TM-XPR25
The TM-XPR25 Passenger Boarding Ramp is the latest innovation in commuter sized boarding ramps. It is designed to fit universally to all known regional aircraft, from the Metro to the CRJ-900. This ramp features an adjustable hydraulic slope with a pivoting upper-bridge. With our newly designed safety features this ramp is faster, safer and more dependable. It is not motorized, very easily placed and fits over the aircraft’s existing steps making boarding and deplaning safer, and faster, for all disabled and non-disabled passengers and staff.
Specifications:
- Length: 28’
- Height: 96” stowed
- Width: 72”
- Weight: 1,500 lbs aluminum frame, 2,000 lbs steel frame
- Wheels: All pneumatic, industrial polyurethane filled
- Brakes: Automatic ON
- Degree of Slope: 12 degrees at maximum height
- Range: 42’ @ 6 degrees, CRJ 76’ @ 11 degrees
Features:
- Optional canopy (not offered in aluminum frame)
- Tow bar included
- Chocks included
- Aircraft positioning rod included
- 2-Year warranty on manufacturing and material defects
EMB
CRJ-200
TM-PGR
The TM-PGR Passenger Boarding Ramp is inexpensive to operate while safe and effective for passenger boarding. It is also low maintenance and easy to use. The TM-PGR fixed boarding ramp exceeds all ADA requirements and also meets the FAA 90mph wind requirements when stowed. This ramp is designed for a drive-in pushback operation. Modifications may be made to this ramp allowing it to operate as a drive through ramp as well.
Specifications:
- Length: 31’ including upper platform
- Height: 112” when upper platform is set @ 76”
- Width: 96” including upper platform
- Weight: 2,200 lbs
- Wheels: All pneumatic, polyurethane filled
- Brakes: Automatic ON; Drop lock system
- Upper Platform: 6’x6’ will accommodate a full size wheel chair
- Upper Bridge: 17” wide universal or 24” for CRJ use
- Main Ramp: 36” wide walking surface
- Lower Bridge: 34” wide walking surface
- Hydraulics: Optional
- Degree of Slope: 12 degrees at 76”
- Range: When ramp is adjusted for the CRJ 700, no other adjustments are required to accommodate the CRJ 900 or the CRJ 200
Features:
- Optional canopy and side curtains
- 2-Year warranty
CRJ 900
ERJ-145

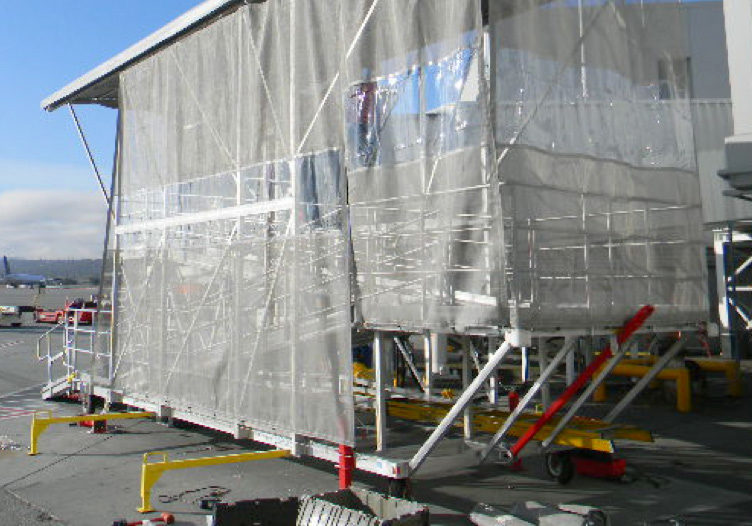

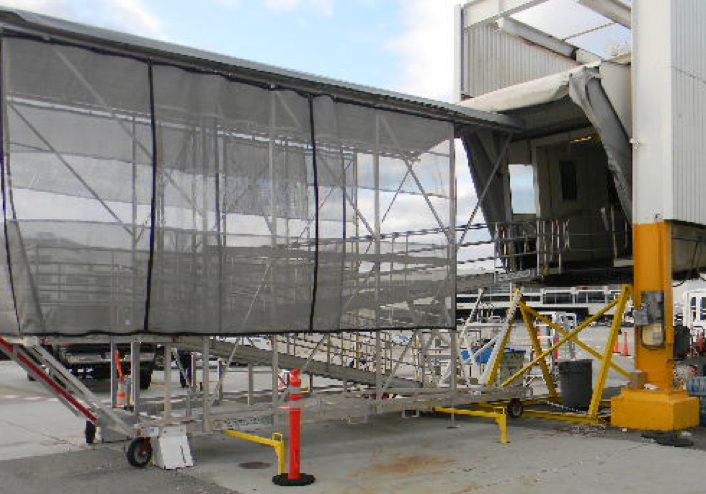

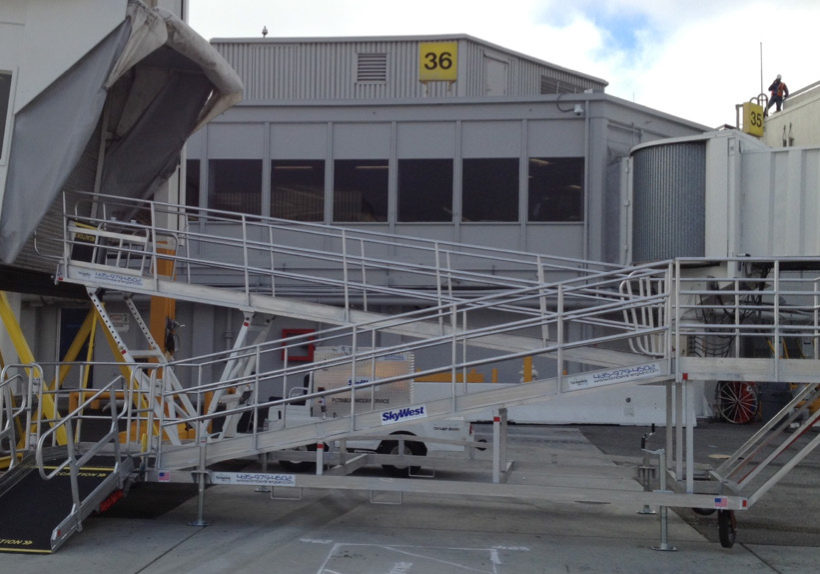

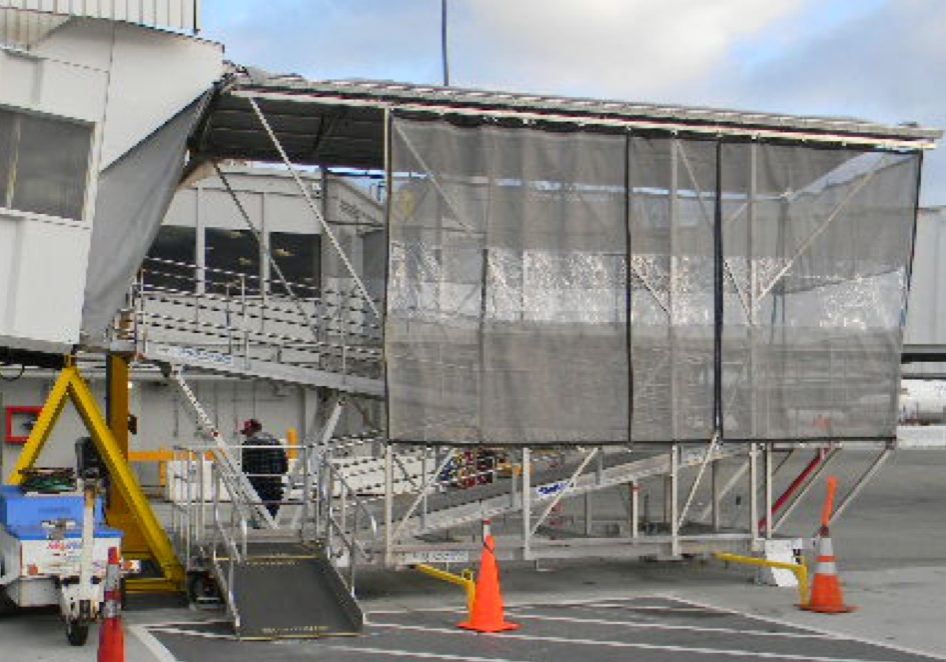

TM-SSR
The TM-SSR Specialty Switchback Ramp is versatile in that it can be used on the jet way or modified to adapt to use on an aircraft. This ramp is safe and effective for passenger boarding, it is also low maintenance and easy to use. The TM-SSR Specialty Switchback Ramp exceeds all ADA requirements it also meets the FAA 90mph wind requirements when stowed. This ramp can be modified to fit the specific needs of any operation.
Specifications:
- Length: varied to fit any operational need
- Height: varied to fit any operational need
- Width: varied to fit any operational need
- Weight: varies
- Wheels: All pneumatic, polyurethane filled
- Brakes: Automatic ON; Drop lock system
- Main Ramp: 36” wide walking surface
- Lower Bridge: 34” wide walking surface
- Hydraulics: Optional
- Degree of Slope: maximum 190
- Range: varies
Features:
- Optional canopy and side curtains
- 2-Year warranty
TM-SSR-2025
The TM-SSR-2025 services the following aircraft: CRJ 200, ERJ 135/145/175, CRJ 700/900, EMB 170/175 717/MD-80, 737, 737 MAX
Specifications:
- Length: 34’ including upper platform
- Height: 110” when in stowed position
- Width: 115”
- Weight: 3,500 lbs
- Wheels: All pneumatic, polyurethane filled
- Brakes: Automatic ON; Slide pin locking system
- Upper Platform: 6’x6’ will accommodate a full size wheel chair
- Main Ramp: 36” wide walking surface
- Lower Bridge: 36” wide walking surface
- Degree of Slope: 14 degrees at 138”
- Range: 74” to 116”
- FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
Features:
- Optional side curtains
- 2-Year warranty on all manufactured and material defects
- 2-Year warranty on Fiber Grade anti slip wailing surface

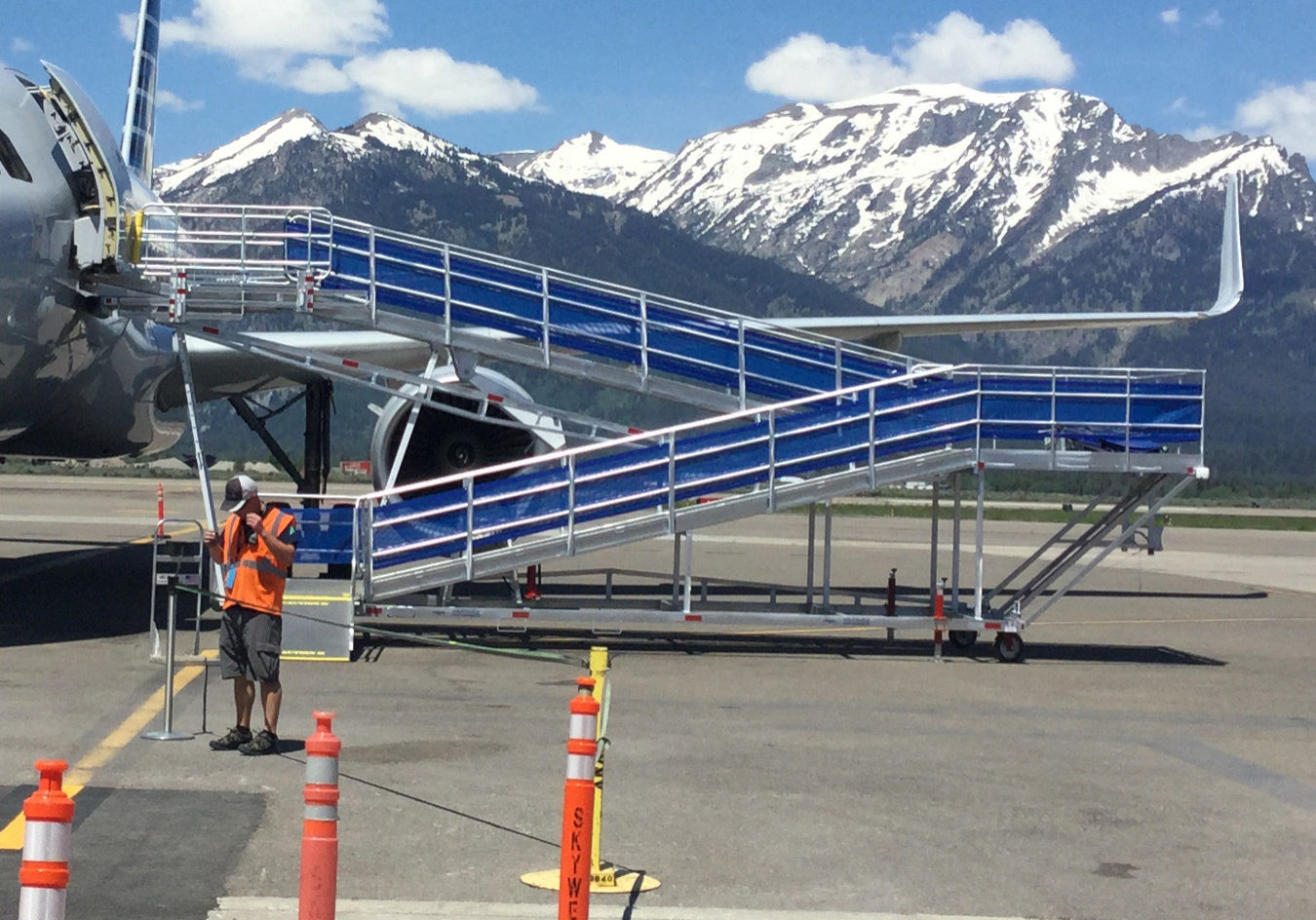

TM-SSR-2530
The TM-SSR-2530 services the following aircraft: CRJ 200, ERJ 135/145/175, CRJ 700/900, EMB 170/175 717/MD-80, 737, 737 MAX, A 319/320
Specifications:
- Length: 34’ including upper platform
- Height: 110” when in stowed position
- Width: 115”
- Weight: 3,500 lbs
- Wheels: All pneumatic, polyurethane filled
- Brakes: Automatic ON; Slide pin locking system
- Upper Platform: 6’x6’ will accommodate a full size wheel chair
- Main Ramp: 36” wide walking surface
- Lower Bridge: 36” wide walking surface
- Degree of Slope: 14 degrees at 138”
- Range: 74” to 138”
- FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
Features:
- Optional canopy and side curtains
- 2-Year warranty on all manufactured and material defects
- 2-year warranty on Fiber Grade anti slip waling surface
TM-SSR-3035
The TM-SSR-3035 services the following MD80 to the 8757, or the ERJ170/190 to the B767
Specifications:
- Length: 42’ including upper platform
- Height: 131” when in stowed position
- Width: 115”
- Weight: 4,500 lbs
- Wheels: All pneumatic, polyurethane filled
- Brakes: Automatic ON; Slide pin locking system
- Upper Platform: 60” x 86” will accommodate a full size wheel chair
- Main Ramp: 36” wide walking surface
- Lower Bridge: 36” wide walking surface
- Degree of Slope: 11 degrees at 155” or 14 degrees at 178”
- Range: 82” to 155” or 92” to 178”
- FAA Requirements: Meets or exceeds all requirements as stated in A/C No: 150/5220-21C
- 3 to 4 person operation or tug
Features:
- NO canopy or side curtain option recommended
- 2-Year warranty on all manufactured and material defects
- 2-Year warranty on Fiber Grade anti slip waling surface
